90 degree Taper Roller Conveyor|Introcon Conveyor systems

Specifications of 90 degree Taper Roller Conveyor

Turning Degree: 90 degree
Effective Width: 300-1000mm
Height: 500-900mm
Standard inside Radius: 900mm
Adjustable Speed: 10-20m/min
Load Capacity: 50KG/m
Motor Power: 0.4/0.75/1.5/2.2kw
Frame Material: Stainless Steel 304, MS
Voltage: 220V/380V

Usage Of 90 degree Taper Roller Conveyor

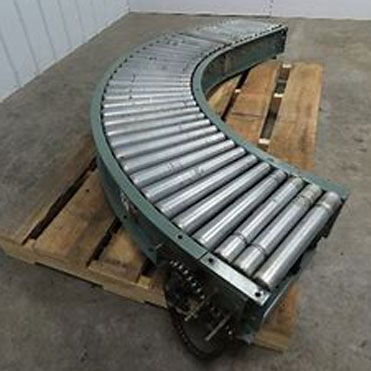

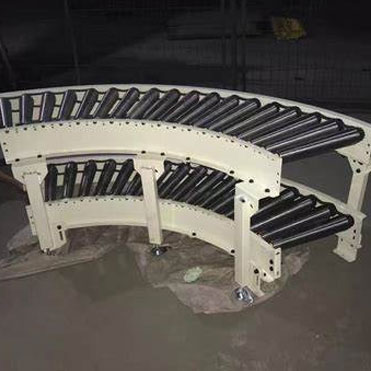

90 Degree roller curve conveyor adopt taper rollers with minimum roller space to ensure stable and smoothly transfer in curved sections.

Turning radius, Conveyor Width, Height and material are optional as practical application.
